Retro Manufacturing

1955-1959 Chevrolet or GMC Truck Apache Radio

Name: 1955-1959 Chevrolet or GMC Truck Apache Radio
Brand: Retro Manufacturing
SKU: AP-M2-107-01P-71P-SCP16
Price: 500.99 CAD
Availability: InStock

$500.99 CAD

Sale Sold out

Feature set M2 M1

Choose a Knob 01P-71P 01-71

Product variants

Quantity

RetroSound Hide-Away Antennas

$49.49

USB/USB-C & USB/Auxiliary Extension Harness for RetroSound Radios

$41.99

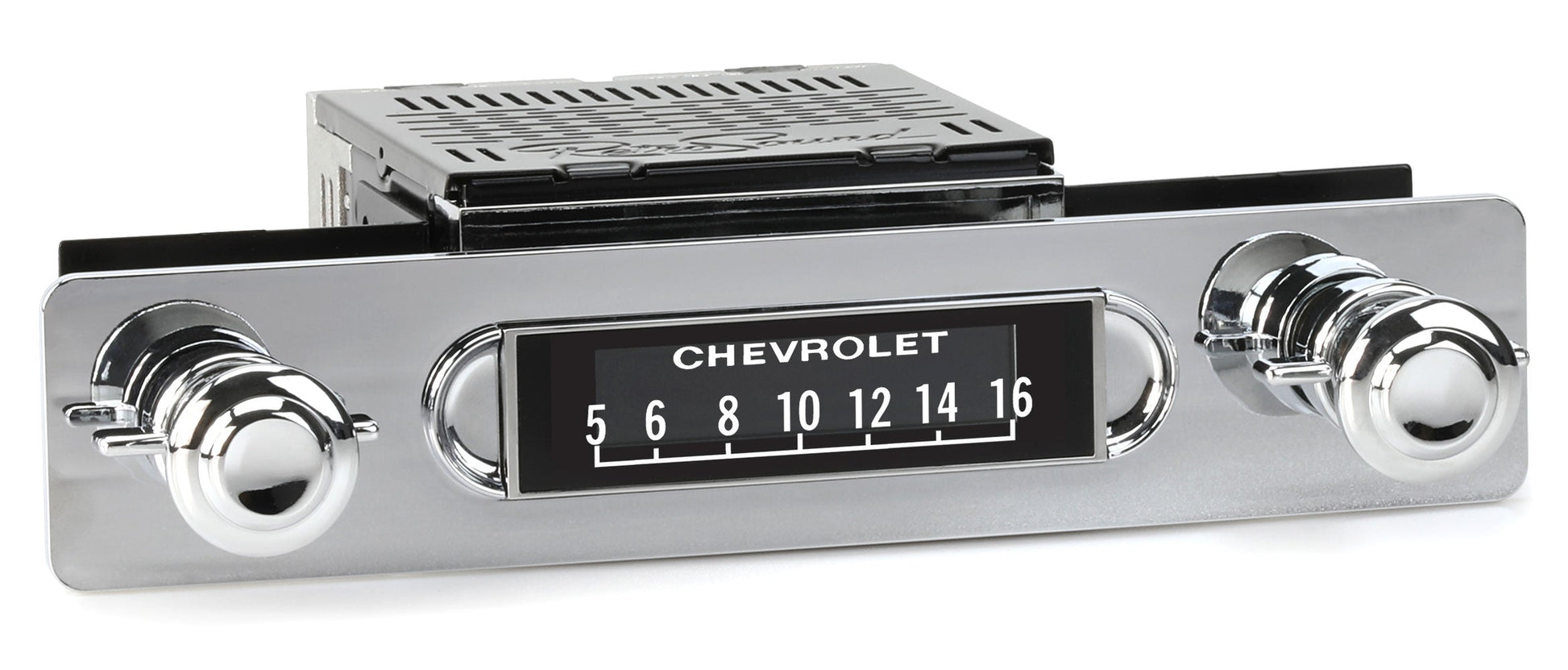

The RetroSound® Apache Radio replaces the original factory radio in your 1955-58 Chevrolet or 1955-59 GMC Truck, featuring the simple but elegant two-shaft control layout of the original factory radios. The Apache fits the dash in your vintage truck without cutting or modifying the original factory opening. The bezel installs from behind the dashboard, leaving the chrome trim around the nose of the radio exposed for a factory appearance. Replica front and rear knobs complete the OEM look by recreating the look and feel of the originals perfectly. Browse radio stations, set favorite channels to presets, stream Bluetooth® audio, and control balance, fader, and tone settings with a period-correct look that blends seamlessly with your classic Chevy truck's interior.

The Apache Radio Face includes a pack of officially licensed Vintage Overlays. These decorative screen protectors are perfect for car shows and events when the display is off, adding a Chevrolet logo and simulated radio dial to the display.

Motor 2B

Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
USB port for flash drives and other devices
2.1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
1-Year Warranty
Assembly is required

Motor 1B

Bluetooth + AM/FM RDS + AUX input

Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
Auxiliary input for portable devices
Built-in 275-watt (peak power) Mosfet amplifier
18 watts RMS x 4 channels – TrueRating™
Non-volatile memory
1-Year Warranty
Assembly is required

Motor 2B

Bluetooth + USB + Pre-outs

Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
USB port for flash drives and other devices
1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
1-Year Warranty
Assembly is required

Motor 4HD

HD Radio + SiriusXM-Ready

HD Radio® Technology
SiriusXM-Ready® (Requires SXV300V1 tuner sold separately)
Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
Auxiliary input for portable devices
Two USB ports for flash drives and other devices
1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
2-Year Warranty
Assembly is required

Specifications

FM
	Motor 1B	Motor 2B	Motor 4HD
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS	87.5-107.9MHz	87.5-107.9MHz	87.5-107.9MHz
Antenna Terminal	External Antenna Connector	External Antenna Connector	External Antenna Connector
Usable Sensitivity	12.5 dBf	12.5 dBf	12.5 dBf
Selectivity	75 dB @ 400kHz	75 dB @ 400kHz	75 dB @ 400kHz
Signal to Noise Ratio	62 dB (Stereo), 67 dB (mono)	62 dB (Stereo), 67 dB (mono)	62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz	0.8% (stereo), 0.5% (mono)	0.8% (stereo), 0.5% (mono)	0.8% (stereo), 0.5% (mono)
Separation	32 dB @ 1kHz	32 dB @ 1kHz	32 dB @ 1kHz
Frequency Response	30-16,000 Hz	30-16,000 Hz	30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable)	530-1710 kHz	530-1710 kHz	530-1710 kHz
Antenna Terminal	External Antenna Connector	External Antenna Connector	External Antenna Connector
General
Dimensions (radio body)	3.96”W x 1.98”H x 4.30”D	3.96”W x 1.98”H x 4.30”D	3.96”W x 1.98”H x 4.30”D
Power Requirements	11.5-14.4 volts	10.5-14.4 volts	10.5-14.4 volts
Current Consumption (during operation)	Max. 15A	Max. 15A	Max. 15A
Current Consumption (car off)	3.5ma	3.5ma	3.5ma
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD)	18x4 watts RMS 40x4 Max Power	25x4 watts RMS 45x4 watts Max Power	25x4 watts RMS 45x4 watts Max Power
Output Impedance	4-8ohm	4-8ohm	4ohm
AUX 1 Input (AUX cable length, 8”)	>300 mV / 6 kΩ	-	>300 mV / 6 kΩ
AUX 2 Input (aux cable length, 8”)	-	-	>300 mV / 6 kΩ
USB 1 Input (USB cable length, 16”)	-	5V (USB female input)	5V (USB female input)
USB 2 Input	-	-	5V (USB female input)
Low Level Output (4 channels)	-	2.85 volts	2.85 volts
EROM	Non-Volatile Memory	Non-Volatile Memory	Non-Volatile Memory
