Retro Manufacturing
1960-1963 Chevrolet Suburban Denver Radio
Couldn't load pickup availability
Add Accessories
Check the box to add to your order
Shipping & Returns
Shipping & Returns
Shipping: Calculated at checkout. Oversized items may require a custom shipping quote. Additional fees may apply.
Returns: Accepted if unused and in original packaging. Clearance items and special orders are final sale.
Please refer to our Shipping & Returns Policy for more info
Description

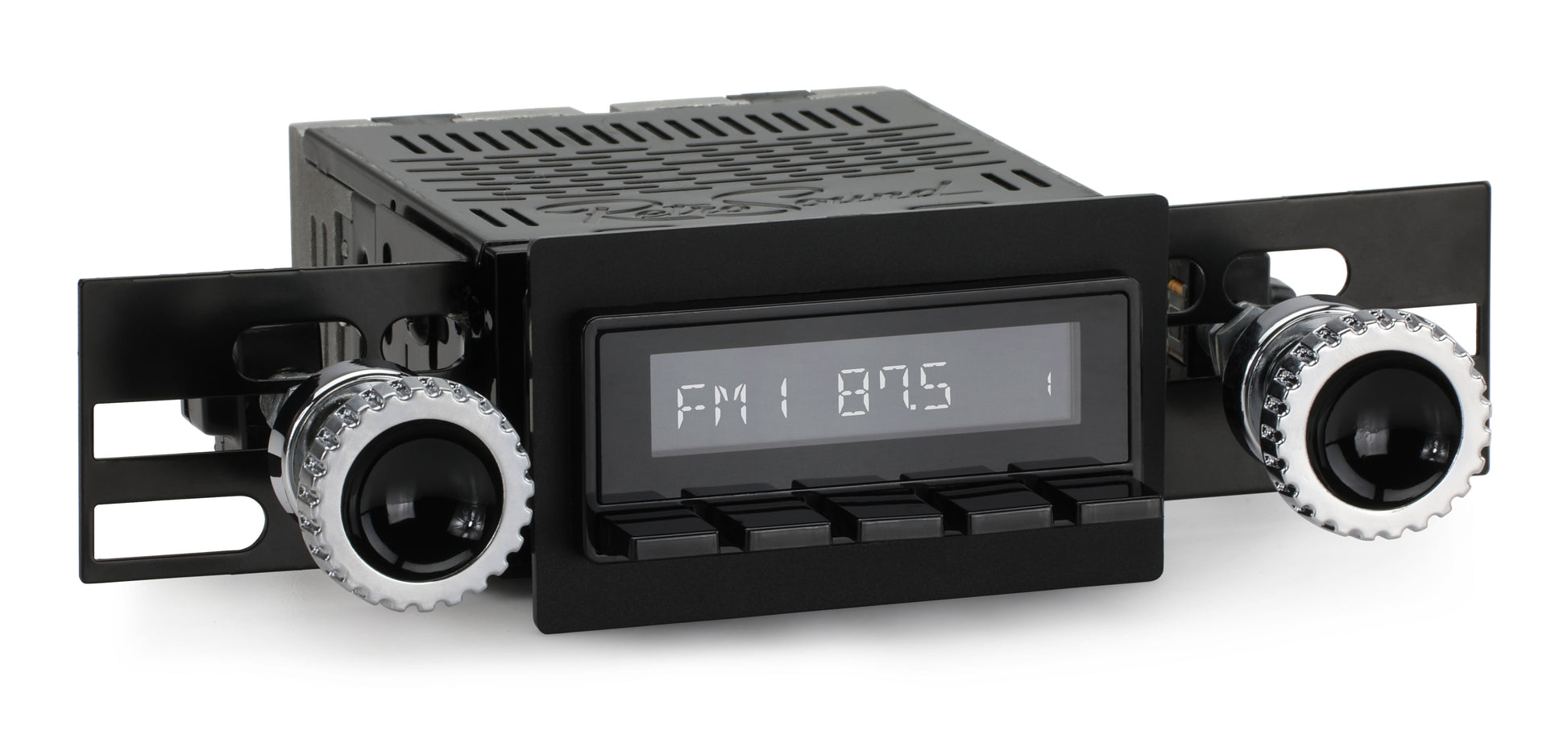

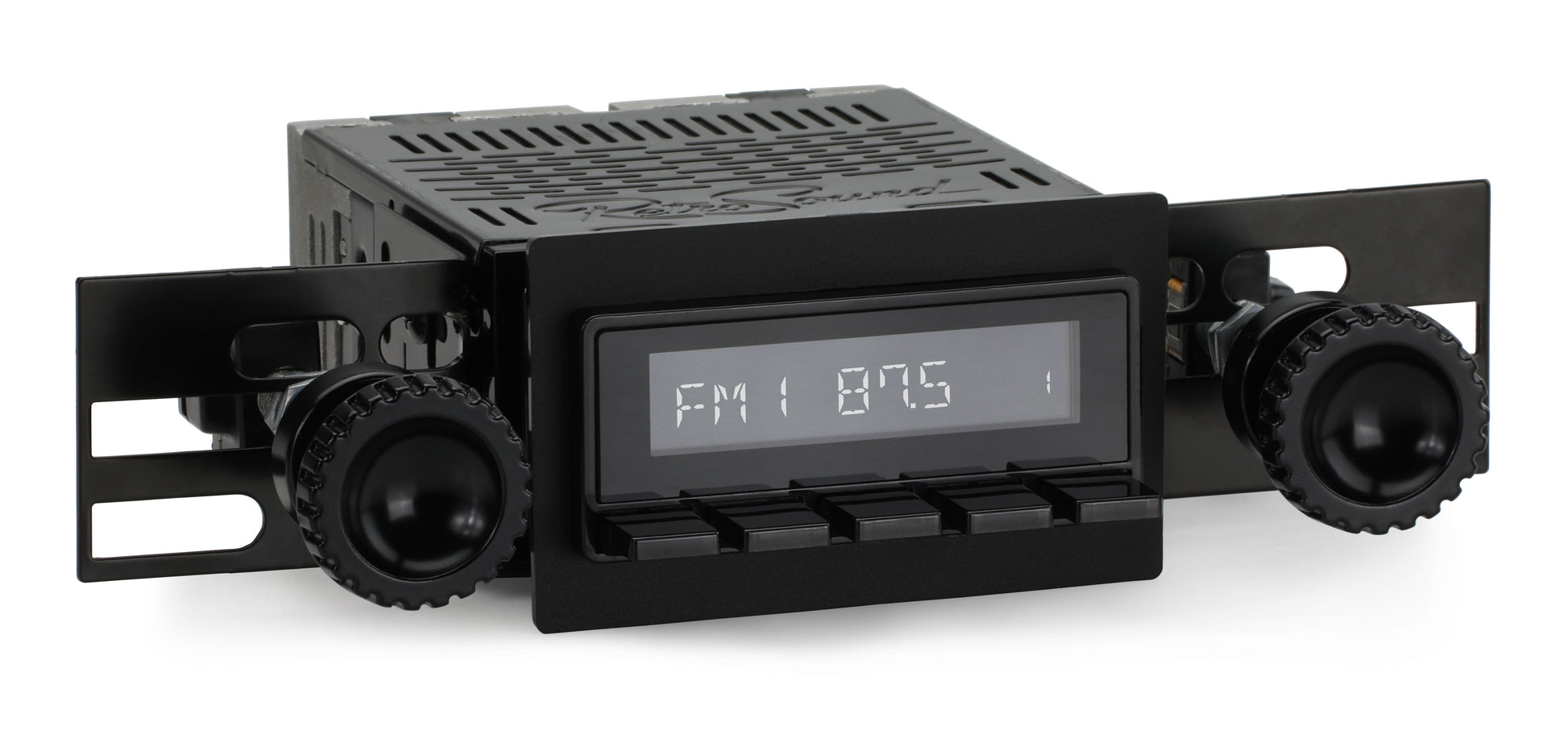

The RetroSound® Denver Radio fits seamlessly into the unique 1.5-inch by 3.5-inch opening in the dash of your vehicle. The nose of the Denver has rounded corners designed to fit flush in your classic vehicle and provide a factory-like fit without the need for a faceplate or bezel. Combined with replica knobs that mimic the look and feel of your original radio, the Denver is the perfect classic car stereo for adding modern stereo features with period-correct styling to your car. The Denver Motor 4HD features an RDS AM/FM tuner with 30 presets powered by a built-in 300-watt (peak power) amplifier at a TrueRating™ of 25 watts RMS x 4 channels. The Motor 4HD includes two rear auxiliary inputs, Built-in Bluetooth® connectivity (microphone included), two rear-mounted USB ports, dual RCA pre-outs, a dedicated subwoofer output, and a adjustable color display. The Motor 4HD also includes a 2-year manufacturer’s warranty.
The Motor 4HD is the only classic car stereo that is SiriusXM-Ready, allowing direct control of your SiriusXM Connect Vehicle Tuner and Made for iPod®/iPhone® functionality to control your Apple devices when connected via Bluetooth® or USB.
- HD Radio® Technology
- Assembly required
- Includes mounting kit and wiring harness
- AM/FM RDS tuner with 30 presets
- Built-in 300-watt (peak power) Mosfet amplifier
- 25 watts RMS x 4 channels – TrueRating™
- Two rear-mounted auxiliary inputs for portable devices
- Built-in Bluetooth® connectivity (Version 5.0)
- Bluetooth® microphone included
- Two rear-mounted USB ports for flash drives and other devices
- Dual RCA pre-outs for external amplifiers
- Dedicated subwoofer output
- Adjustable color display
- Made for iPod®/iPhone® (Compatibility with devices through streaming & USB)
- SiriusXM-Ready (SXV300V1 tuner sold separately)
- $70.00 rebate on the purchase of SXV300V1 SiriusXM® tuner*
- Three months SiriusXM® Platinum Plan included upon activation*
- 2-Year Warranty
*SiriusXM promotion is valid for US/Canada residents only.
Motor 1B
- Built-in Bluetooth® (Version 5.0)
- Includes Bluetooth® microphone for hands-free calls
- AM/FM RDS tuner with 30 presets
- Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
- Auxiliary input for portable devices
- Built-in 275-watt (peak power) Mosfet amplifier
- 18 watts RMS x 4 channels – TrueRating™
- Non-volatile memory
- 1-Year Warranty
- Assembly is required
Motor 2B
- Built-in Bluetooth® (Version 5.0)
- Includes Bluetooth® microphone for hands-free calls
- AM/FM RDS tuner with 30 presets
- Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
- USB port for flash drives and other devices
- 1-amp device charging via USB
- Built-in 300-watt (peak power) Mosfet amplifier
- 25 watts RMS x 4 channels – TrueRating™
- Dual RCA pre-outs for external amplifiers
- Dedicated subwoofer output
- Adjustable color display
- Non-volatile memory
- 1-Year Warranty
- Assembly is required
Motor 4HD
- HD Radio® Technology
- SiriusXM-Ready® (Requires SXV300V1 tuner sold separately)
- Built-in Bluetooth® (Version 5.0)
- Includes Bluetooth® microphone for hands-free calls
- AM/FM RDS tuner with 30 presets
- Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
- Auxiliary input for portable devices
- Two USB ports for flash drives and other devices
- 1-amp device charging via USB
- Built-in 300-watt (peak power) Mosfet amplifier
- 25 watts RMS x 4 channels – TrueRating™
- Dual RCA pre-outs for external amplifiers
- Dedicated subwoofer output
- Adjustable color display
- Non-volatile memory
- 2-Year Warranty
- Assembly is required
Specifications
| Motor 1B | Motor 2B | Motor 4HD | |
| FM | |||
|---|---|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz | 87.5-107.9MHz | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf | 12.5 dBf | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz | 75 dB @ 400kHz | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz | 32 dB @ 1kHz | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz | 30-16,000 Hz | 30-16,000 Hz |
| AM (EU and US Tuning Capable) | |||
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz | 530-1710 kHz | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| General | |||
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 11.5-14.4 volts | 10.5-14.4 volts | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A | Max. 15A | Max. 15A |
| Current Consumption (car off) | 3.5ma | 3.5ma | 3.5ma |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 18x4 watts RMS 40x4 Max Power | 25x4 watts RMS 45x4 watts Max Power | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4-8ohm | 4-8ohm | 4ohm |
| AUX 1 Input (AUX cable length, 8”) | >300 mV / 6 kΩ | - | >300 mV / 6 kΩ |
| AUX 2 Input (aux cable length, 8”) | - | - | >300 mV / 6 kΩ |
| USB 1 Input (USB cable length, 16”) | - | 5V (USB female input) | 5V (USB female input) |
| USB 2 Input | - | - | 5V (USB female input) |
| Low Level Output (4 channels) | - | 2.85 volts | 2.85 volts |
| EROM | Non-Volatile Memory | Non-Volatile Memory | Non-Volatile Memory |
