1982-1985 Chevrolet S-10 Blazer New York 1.5 DIN Radio

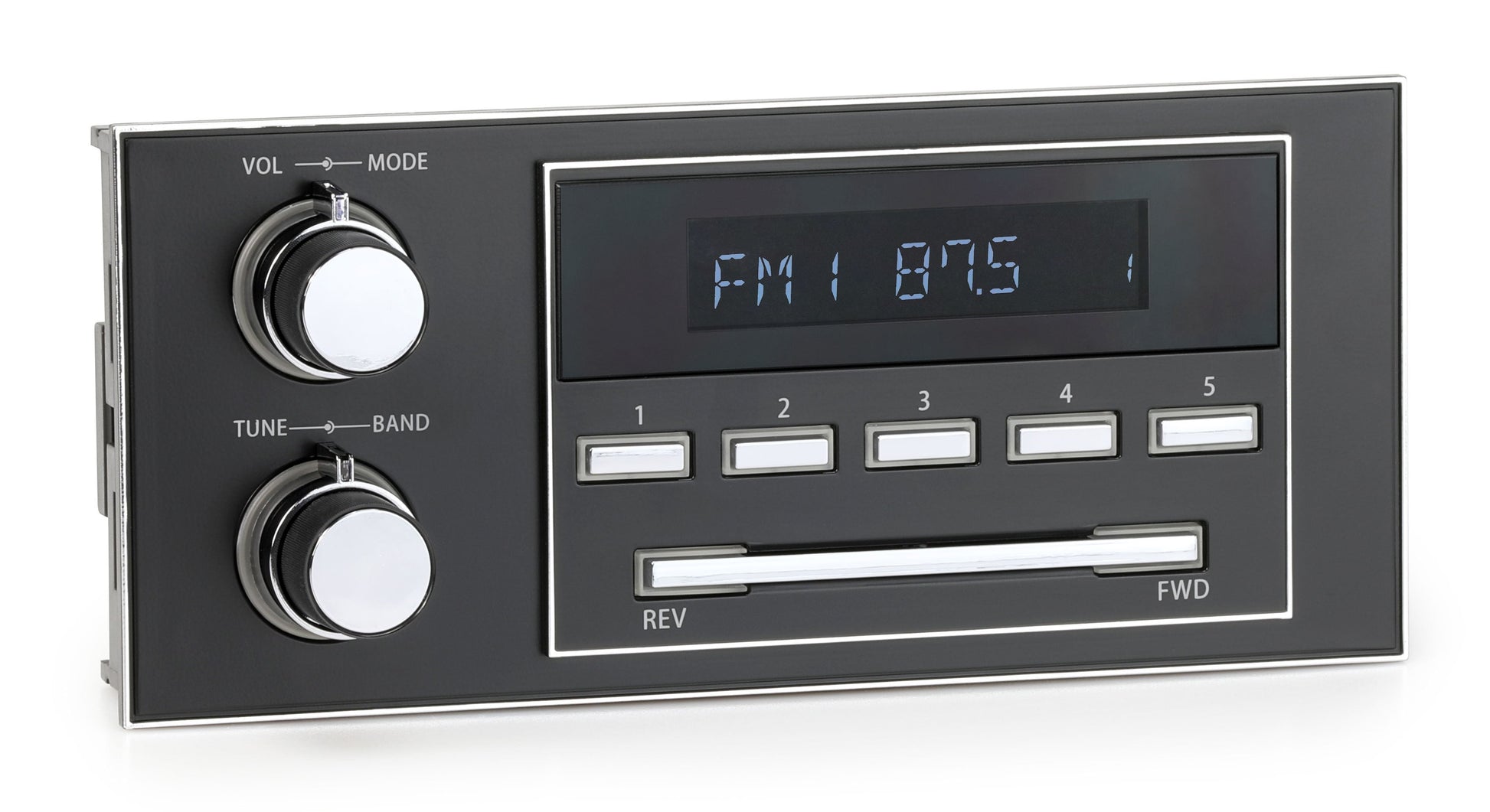

The RetroSound New York is a direct-fit replacement radio compatible with 1982-85 Chevrolet S-10 Blazer/Pickup Truck, 1982-85 GMC S15 Jimmy/Pickup Truck, and 1990-94 Chevrolet Lumina that came equipped with a standard 1.5 DIN factory radio.New York looks and fits like the original factory radio mounting seamlessly into your vehicle with the included mounting hardware and wiring harness.

Motor 2B
The Motor 2B feature set includes an AM/FM tuner with 30 presets, a built-in 300-watt amplifier (25-watts RMS/45 peak x 4 channels), and built-in Bluetooth® for hands-free calling and high-quality audio streaming. The Motor 2B also includes made-for-iPod®/iPhone functionality to control your Apple device, is compatible with all Android devices, includes a rear-mounted USB port with 2.1-amp device charging, a dedicated subwoofer output, and dual RCA pre-outs to connect an amplifier. The adjustable color display is adjustable, allowing you to match your vehicle's gauge color.

Features

• Built-in Bluetooth® (Version 5.0)
• Includes Bluetooth® microphone for hands-free calls
• Made for iPod®/iPhone®
• AM/FM RDS tuner with 30 presets
• Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
• USB port for flash drives and other devices
• 2.1-amp device charging via USB
• Built-in 300-watt (peak power) Mosfet amplifier
• 25 watts RMS x 4 channels – TrueRating™
• Dual RCA pre-outs for external amplifiers
• Dedicated subwoofer output
• Adjustable color display
• Non-volatile memory
• 1-Year Warranty
• Assembly is required

Specifications

Motor 1B

Motor 2B

Motor 4HD

FM

Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS

87.5-107.9MHz

87.5-107.9MHz

87.5-107.9MHz

Antenna Terminal

External Antenna Connector

External Antenna Connector

External Antenna Connector

Usable Sensitivity

12.5 dBf

12.5 dBf

12.5 dBf

Selectivity

75 dB @ 400kHz

75 dB @ 400kHz

75 dB @ 400kHz

Signal to Noise Ratio

62 dB (Stereo), 67 dB (mono)

62 dB (Stereo), 67 dB (mono)

62 dB (Stereo), 67 dB (mono)

Harmonic Distortion @ 1 kHz

0.8% (stereo), 0.5% (mono)

0.8% (stereo), 0.5% (mono)

0.8% (stereo), 0.5% (mono)

Separation

32 dB @ 1kHz

32 dB @ 1kHz

32 dB @ 1kHz

Frequency Response

30-16,000 Hz

30-16,000 Hz

30-16,000 Hz

AM (EU and US Tuning Capable)

Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable)

530-1710 kHz

530-1710 kHz

530-1710 kHz

Antenna Terminal

External Antenna Connector

External Antenna Connector

External Antenna Connector

General

Dimensions (radio body)

3.96”W x 1.98”H x 4.30”D

3.96”W x 1.98”H x 4.30”D

3.96”W x 1.98”H x 4.30”D

Power Requirements

11.5-14.4 volts

10.5-14.4 volts

10.5-14.4 volts

Current Consumption (during operation)

Max. 15A

Max. 15A

Max. 15A

Current Consumption (car off)

3.5ma

3.5ma

3.5ma

Output Power (@ 14.4 volts @ 4 ohm @ 1% THD)

18x4 watts RMS 40x4 Max Power

25x4 watts RMS 45x4 watts Max Power

25x4 watts RMS 45x4 watts Max Power

Output Impedance

4-8ohm

4-8ohm

4ohm

AUX 1 Input (AUX cable length, 8”)

>300 mV / 6 kΩ

-

>300 mV / 6 kΩ

AUX 2 Input (aux cable length, 8”)

-

-

>300 mV / 6 kΩ

USB 1 Input (USB cable length, 16”)

-

5V (USB female input)

5V (USB female input)

USB 2 Input

-

-

5V (USB female input)

Low Level Output (4 channels)

-

2.85 volts

2.85 volts

EROM

Non-Volatile Memory

Non-Volatile Memory

Non-Volatile Memory

Manuals & Documentation

• RetroSound Installation and Assembly Manual
• RetroSound User Manual Motor 4HD
• RetroSound User Manual Motor 2B
• RetroSound User Manual Motor 1B
• New York Face Quick Start Guide
