1985-1986 Ford Tempo RetroSound® Dallas Radio

Name: 1985-1986 Ford Tempo RetroSound® Dallas Radio
Brand: Retro Manufacturing
SKU: DAL-M4
Price: 650.99 CAD
Availability: InStock

$650.99 CAD

Sale Sold out

Feature Set M4 M2 M1

Product variants

Quantity

USB/USB-C & USB/Auxiliary Extension Harness for RetroSound Radios

$41.99

RetroSound® SUB8100 Subwoofer and Quadraphonic Amplifier Bundle

$599.99 ~~$658.49~~

RetroSound® Dallas Tempered Glass Vintage Overlay

$32.99

RetroSound Hide-Away Antennas

$49.49

SXV300 SiriusXM Connect Vehicle Tuner

$89.99 ~~$97.49~~

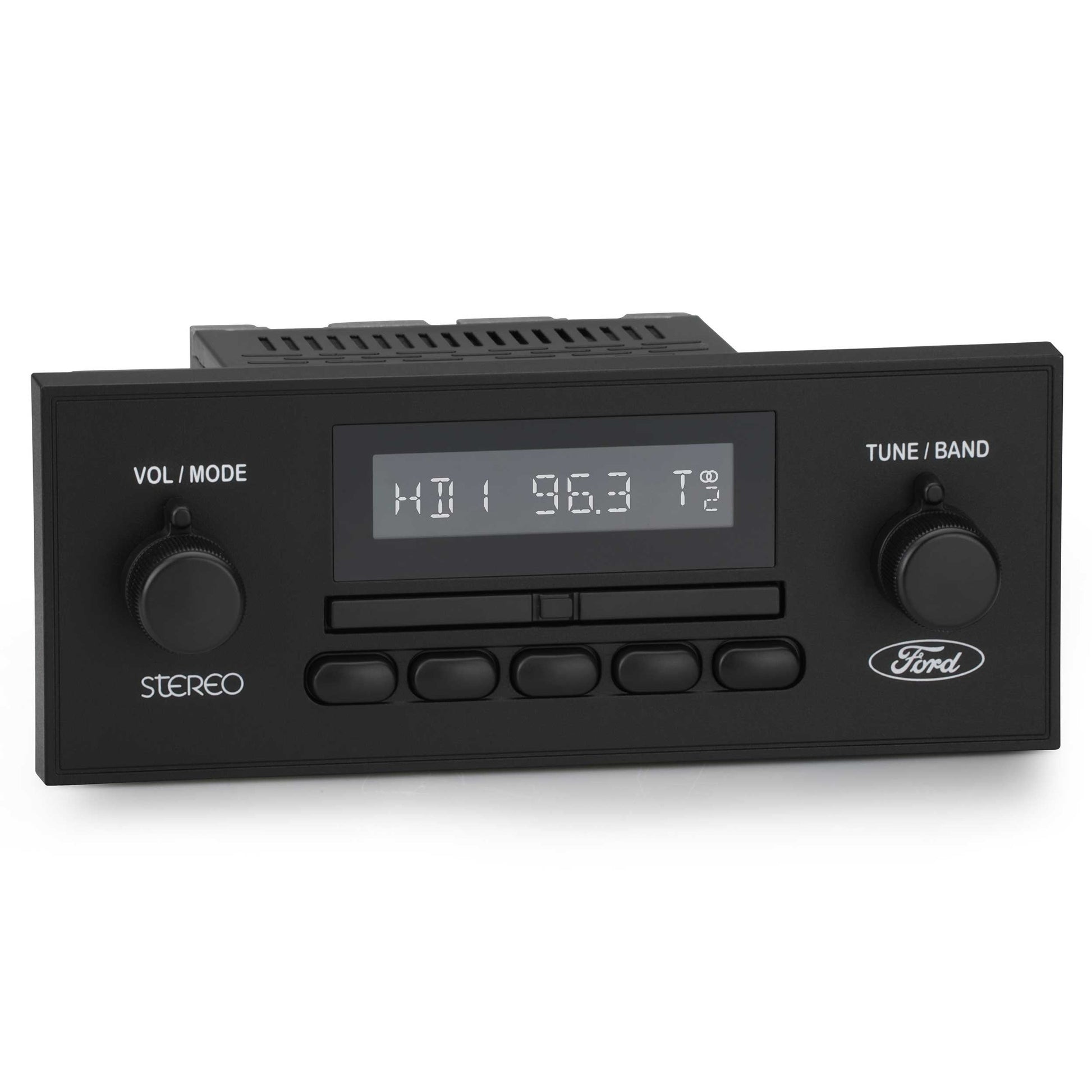

The RetroSound® Dallas Radio is an officially licensed Ford Radio Face designed to replicate the original factory radio in your 1985-86 Ford Bronco or 1985-86 Ford F-Series Truck. Dallas’s subtle and straightforward design features replica black plastic knobs, rounded push-buttons, and a thin seek bar, finished in matte black with the official Ford logo for added authenticity. The Dallas mounts directly into the factory opening in your 1985-86 Ford Bronco with the included mounting kit and vehicle-specific wiring harness for an easy installation and OEM appearance. The Dallas’s retro appearance looks period-correct in your dash and adds all the modern technology you’d expect in a modern car stereo

Motor 4HD

HD Radio® Technology
SiriusXM-Ready® (SXV300V1 tuner sold separately)
Made for iPod®/iPhone®
Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Two USB ports for flash drives and other devices
2.1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
2-Year Warranty
Assembly is required

Motor 1B

Bluetooth + AM/FM RDS + AUX input

Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
Auxiliary input for portable devices
Built-in 275-watt (peak power) Mosfet amplifier
18 watts RMS x 4 channels – TrueRating™
Non-volatile memory
1-Year Warranty
Assembly is required

Motor 2B

Bluetooth + USB + Pre-outs

Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
USB port for flash drives and other devices
1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
1-Year Warranty
Assembly is required

Motor 4HD

HD Radio + SiriusXM-Ready

HD Radio® Technology
SiriusXM-Ready® (Requires SXV300V1 tuner sold separately)
Built-in Bluetooth® (Version 5.0)
Includes Bluetooth® microphone for hands-free calls
AM/FM RDS tuner with 30 presets
Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
Auxiliary input for portable devices
Two USB ports for flash drives and other devices
1-amp device charging via USB
Built-in 300-watt (peak power) Mosfet amplifier
25 watts RMS x 4 channels – TrueRating™
Dual RCA pre-outs for external amplifiers
Dedicated subwoofer output
Adjustable color display
Non-volatile memory
2-Year Warranty
Assembly is required

Specifications

FM
	Motor 1B	Motor 2B	Motor 4HD
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS	87.5-107.9MHz	87.5-107.9MHz	87.5-107.9MHz
Antenna Terminal	External Antenna Connector	External Antenna Connector	External Antenna Connector
Usable Sensitivity	12.5 dBf	12.5 dBf	12.5 dBf
Selectivity	75 dB @ 400kHz	75 dB @ 400kHz	75 dB @ 400kHz
Signal to Noise Ratio	62 dB (Stereo), 67 dB (mono)	62 dB (Stereo), 67 dB (mono)	62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz	0.8% (stereo), 0.5% (mono)	0.8% (stereo), 0.5% (mono)	0.8% (stereo), 0.5% (mono)
Separation	32 dB @ 1kHz	32 dB @ 1kHz	32 dB @ 1kHz
Frequency Response	30-16,000 Hz	30-16,000 Hz	30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable)	530-1710 kHz	530-1710 kHz	530-1710 kHz
Antenna Terminal	External Antenna Connector	External Antenna Connector	External Antenna Connector
General
Dimensions (radio body)	3.96”W x 1.98”H x 4.30”D	3.96”W x 1.98”H x 4.30”D	3.96”W x 1.98”H x 4.30”D
Power Requirements	11.5-14.4 volts	10.5-14.4 volts	10.5-14.4 volts
Current Consumption (during operation)	Max. 15A	Max. 15A	Max. 15A
Current Consumption (car off)	3.5ma	3.5ma	3.5ma
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD)	18x4 watts RMS 40x4 Max Power	25x4 watts RMS 45x4 watts Max Power	25x4 watts RMS 45x4 watts Max Power
Output Impedance	4-8ohm	4-8ohm	4ohm
AUX 1 Input (AUX cable length, 8”)	>300 mV / 6 kΩ	-	>300 mV / 6 kΩ
AUX 2 Input (aux cable length, 8”)	-	-	>300 mV / 6 kΩ
USB 1 Input (USB cable length, 16”)	-	5V (USB female input)	5V (USB female input)
USB 2 Input	-	-	5V (USB female input)
Low Level Output (4 channels)	-	2.85 volts	2.85 volts
EROM	Non-Volatile Memory	Non-Volatile Memory	Non-Volatile Memory
