Retro Manufacturing

RetroSound 6-12 Volt Converter

$224.99 CAD
$224.99 CAD
Sale Sold out

Shipping & Returns

Shipping: Calculated at checkout. Oversized items may require a custom shipping quote. Additional fees may apply.

Returns: Accepted if unused and in original packaging. Clearance items and special orders are final sale.

Please refer to our Shipping & Returns Policy for more info

Description

Upgrade Your 6V Classic Car's Audio System

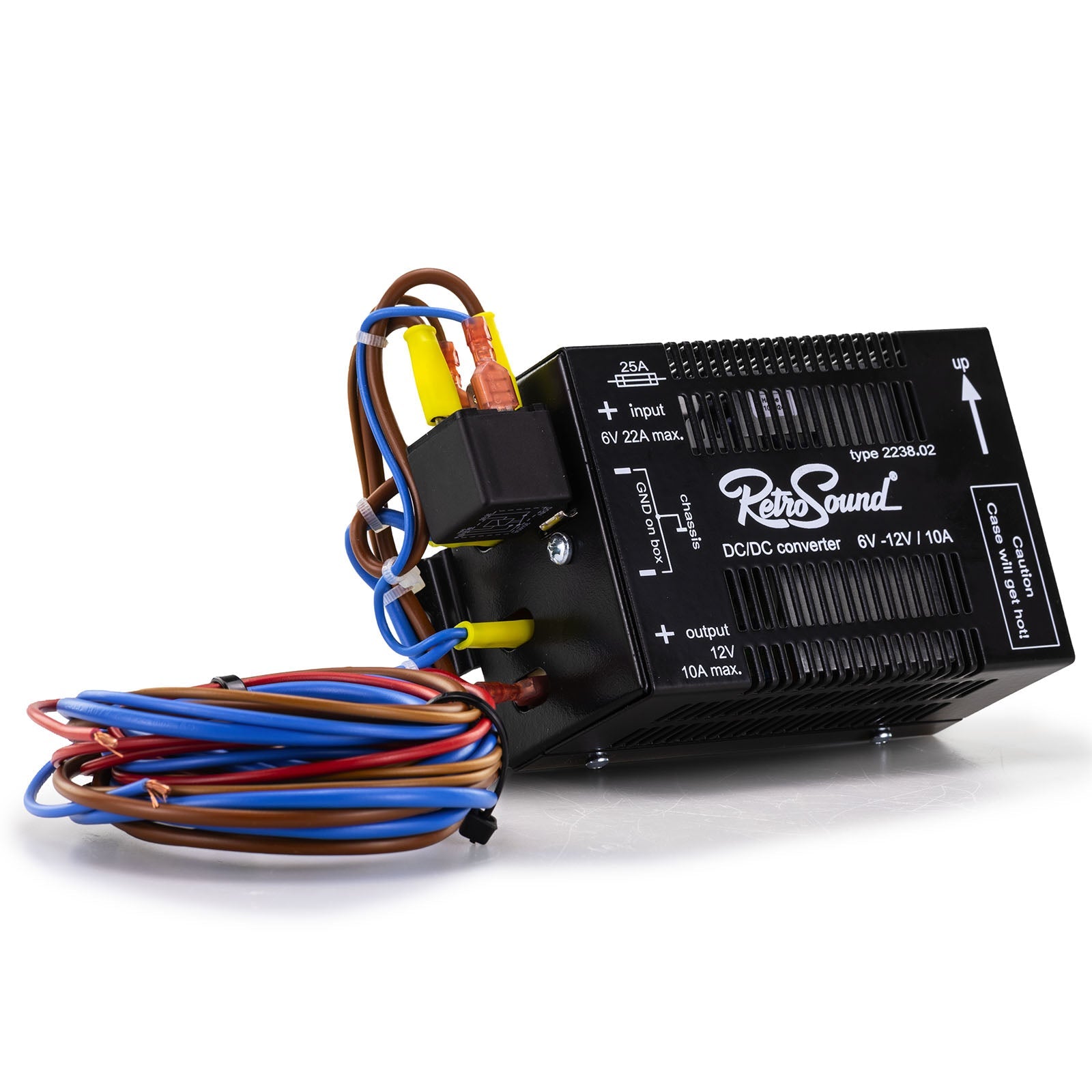

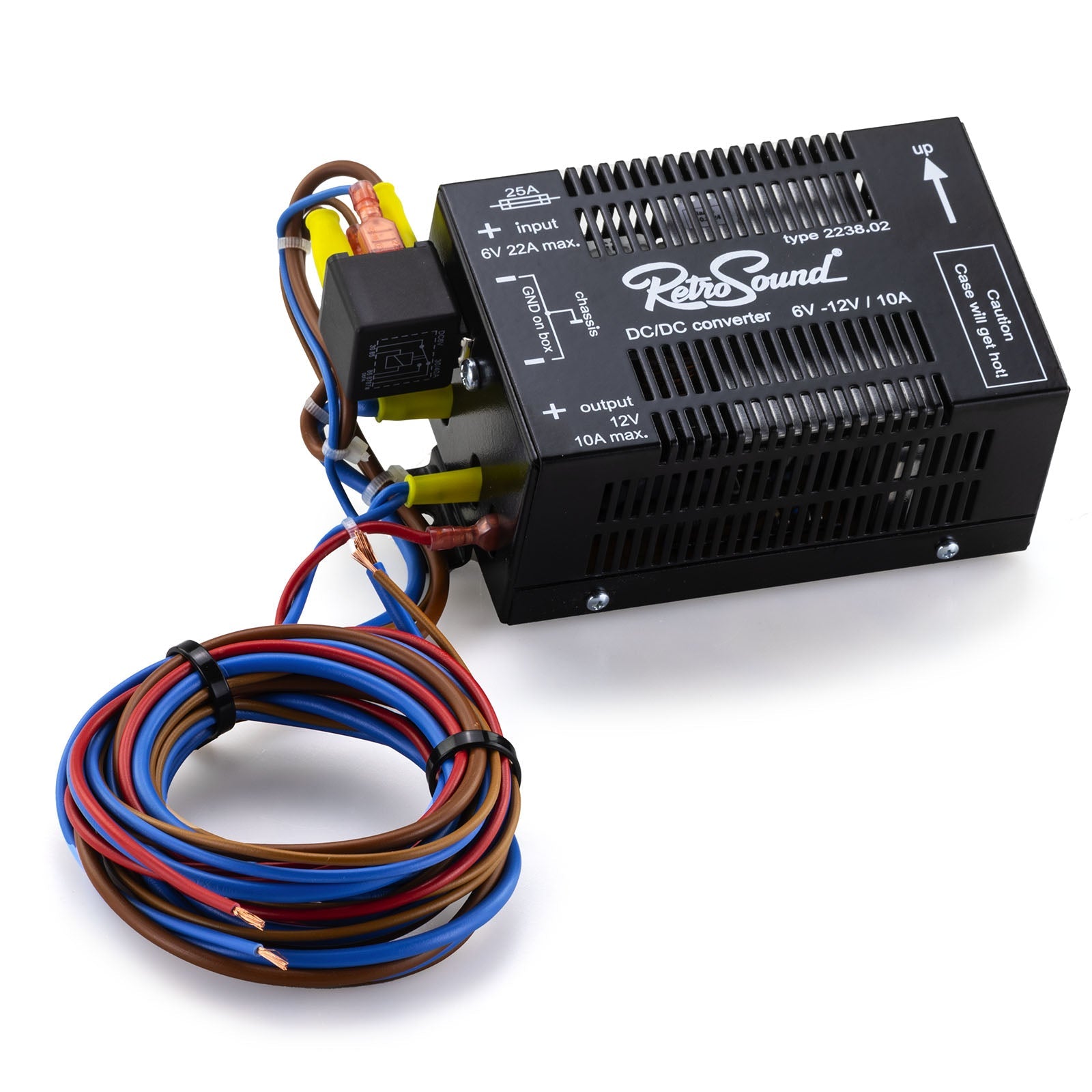

Breathe new life into your vintage vehicle with our best-in-class 6 volt DC to 12 volt DC converter. This German-engineered device ensures dependable power for your 12V modern electronics, such as RetroSound radios, without the hassle of revamping your electrical system.

For vintage car enthusiasts installing 12V RetroSound radios, this DC voltage converter offers the perfect combination of power, protection, and quality. Order yours today to enjoy the best of both worlds: timeless style with cutting-edge technology!

SPECIFICATION DETAIL
Input Voltage (DC) 5.5 – 7.5V
Output Voltage (DC) 12V
Output Current (DC) 10A (no limitation!)
Output Stability with Input Variation Ua proportional to Ue
CV Stability at 0-100% Load 3V
CV Ripple (RMS) 25mV
No-load Current Consumption (DC/DC Converter) < 30mA

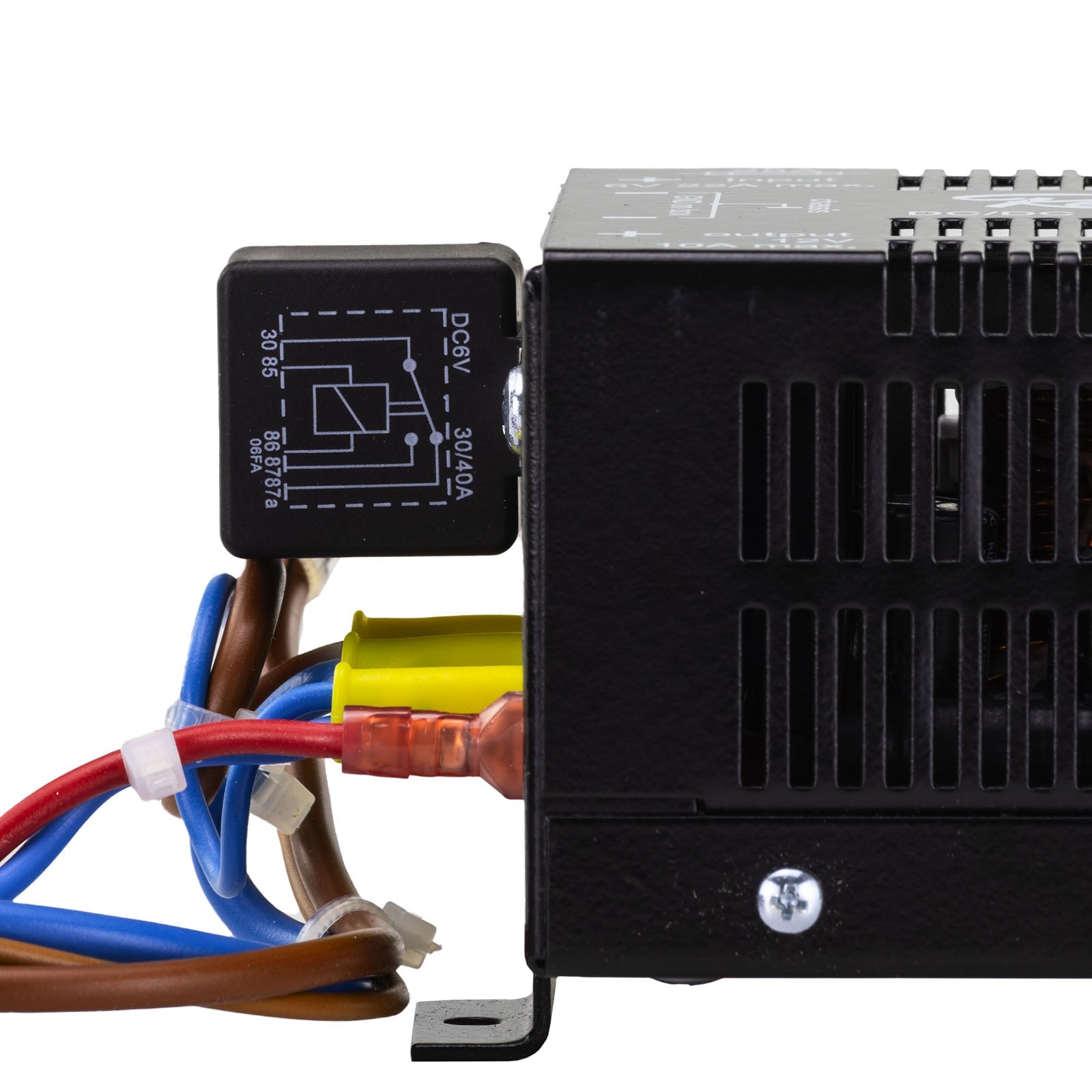

Auxiliary Relay Current Consumption approx. 300mA
Full Load Current Consumption 24A
Fuse Rating 25A
Regulation Time 10-100% Load 1.5ms
Operating Temperature Range 0 - 35°C
Max. Relative Humidity (non-condensing) 85% at 40°C
Cable Length approx. 1.5m
Dimensions (W x H x D) approx. 150 x 85 x 70 mm³
Weight approx. 0.7 kg
Color Black, RAL 9005
Protection Grade / Class IP 30 / III

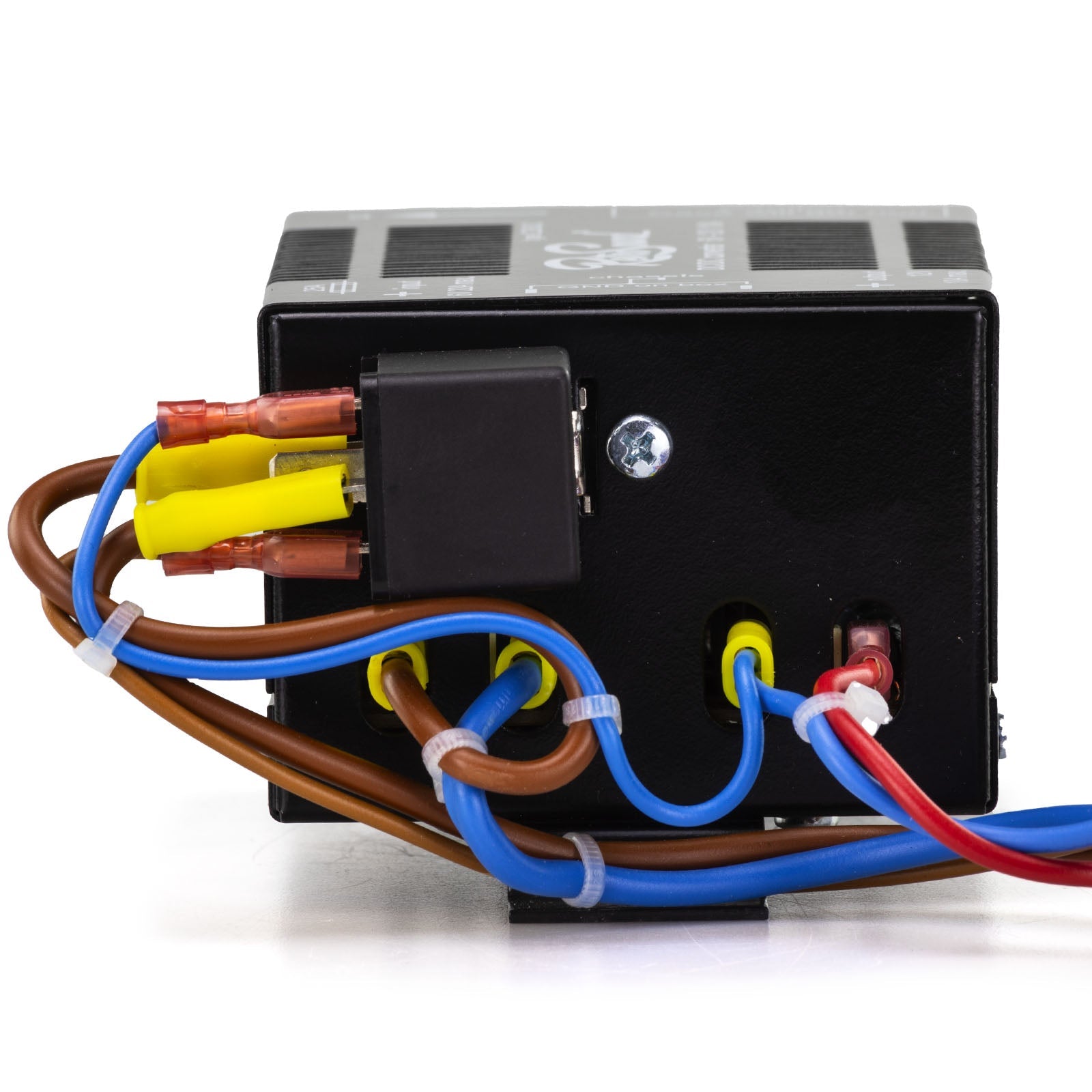

Electrical Connections modul (Input) 6.3mm flat connectors
Electrical Connections modul (Output) 6.3mm flat connectors
EMI Suppression DIN VDE 0875 T 3 G
