Retro Manufacturing

RetroSound DIN Solutions Europa DIN Radio

$658.49 CAD
$658.49 CAD
Sale Sold out
Motor

Add Accessories

Check the box to add to your order

RetroSound® Europa Tempered Glass Vintage Overlay
RetroSound® Europa Tempered Glass Vintage Overlay
$32.99
RetroSound® SUB8100 Subwoofer and Quadraphonic Amplifier Bundle
RetroSound® SUB8100 Subwoofer and Quadraphonic Amplifier Bundle
$599.99 $658.49
SXV300 SiriusXM Connect Vehicle Tuner
SXV300 SiriusXM Connect Vehicle Tuner
$89.99 $97.49
USB/USB-C & USB/Auxiliary Extension Harness for RetroSound Radios
USB/USB-C & USB/Auxiliary Extension Harness for RetroSound Radios
$41.99
RetroSound Hide-Away Antennas
RetroSound Hide-Away Antennas
$49.49

Shipping & Returns

Shipping: Calculated at checkout. Oversized items may require a custom shipping quote. Additional fees may apply.

Returns: Accepted if unused and in original packaging. Clearance items and special orders are final sale.

Please refer to our Shipping & Returns Policy for more info

Description

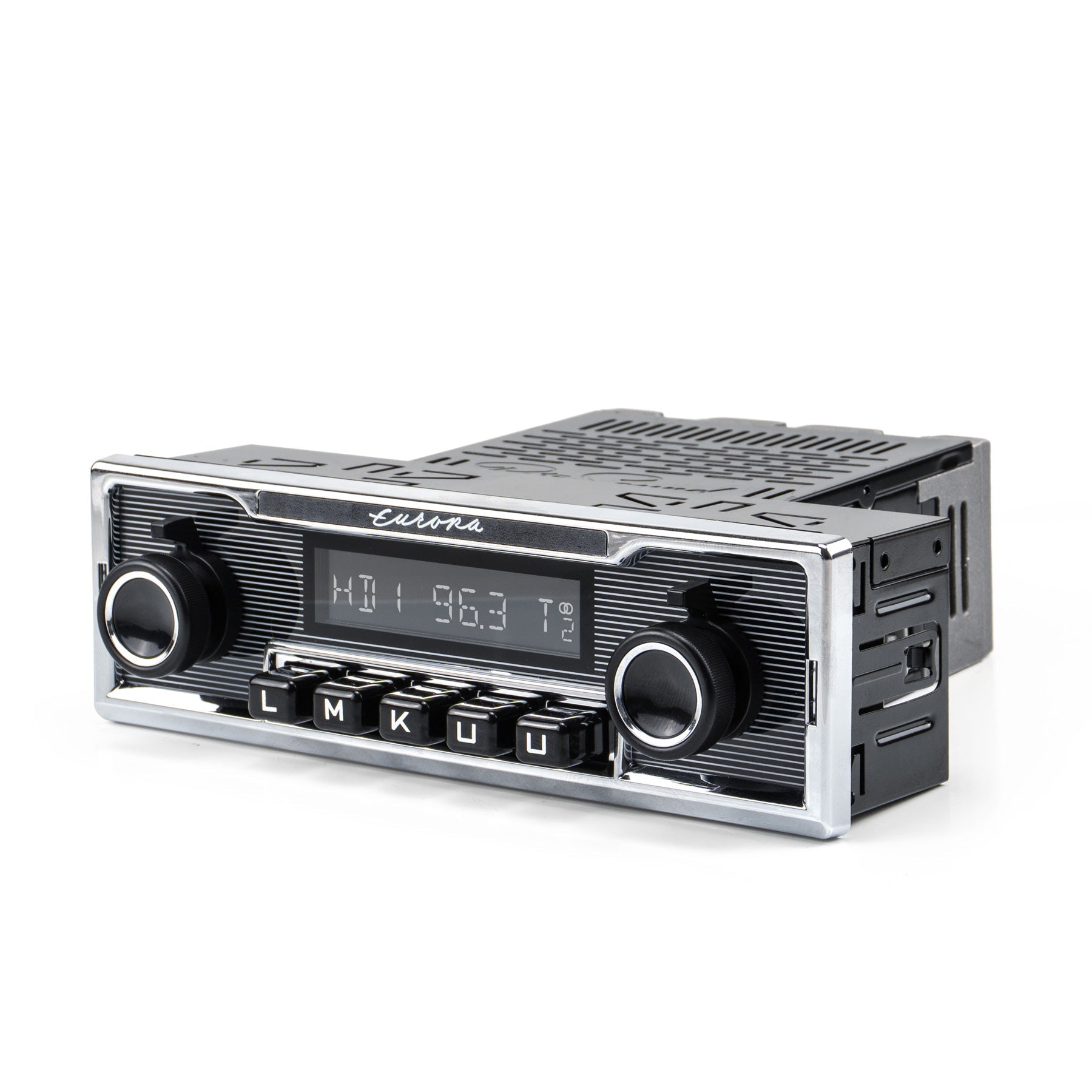

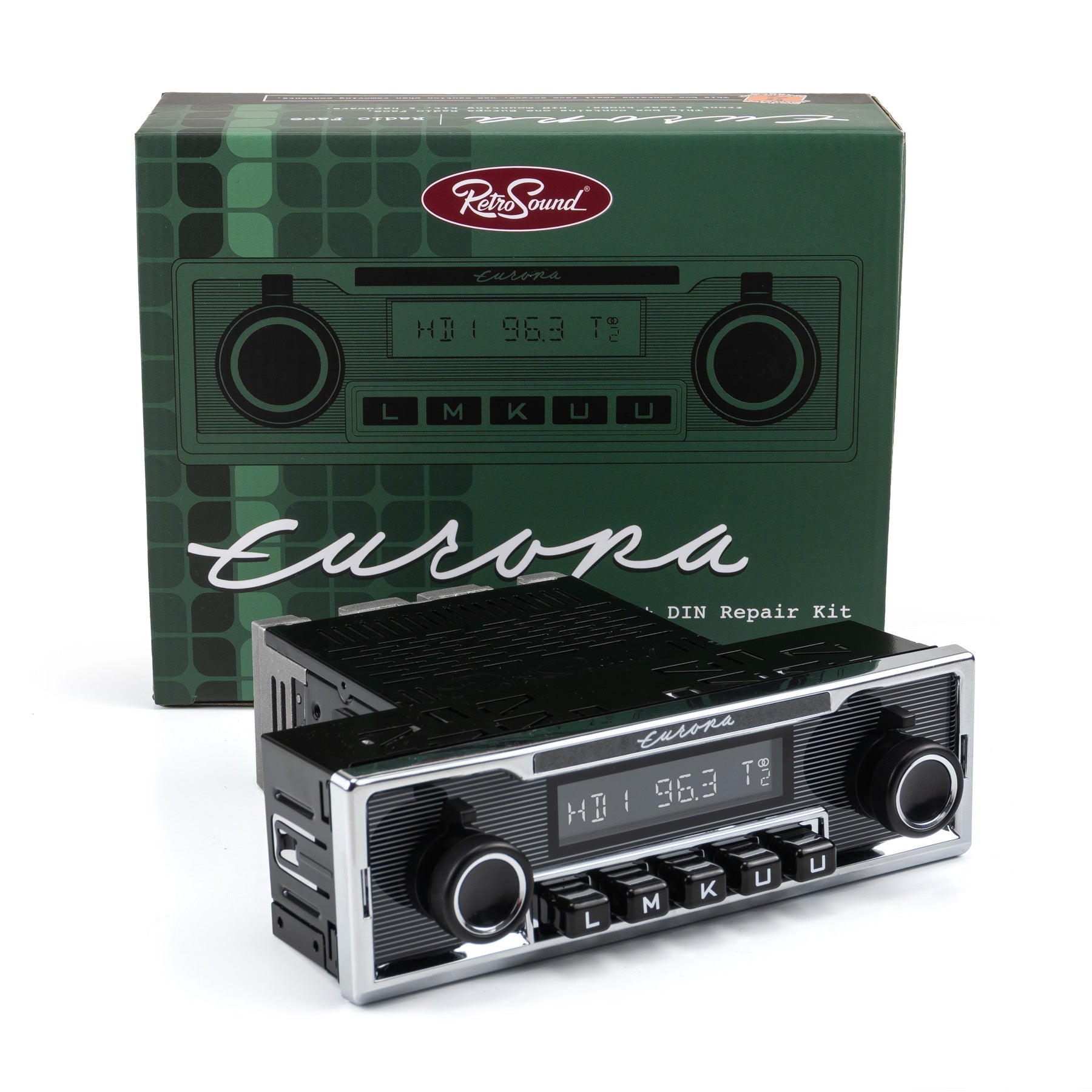

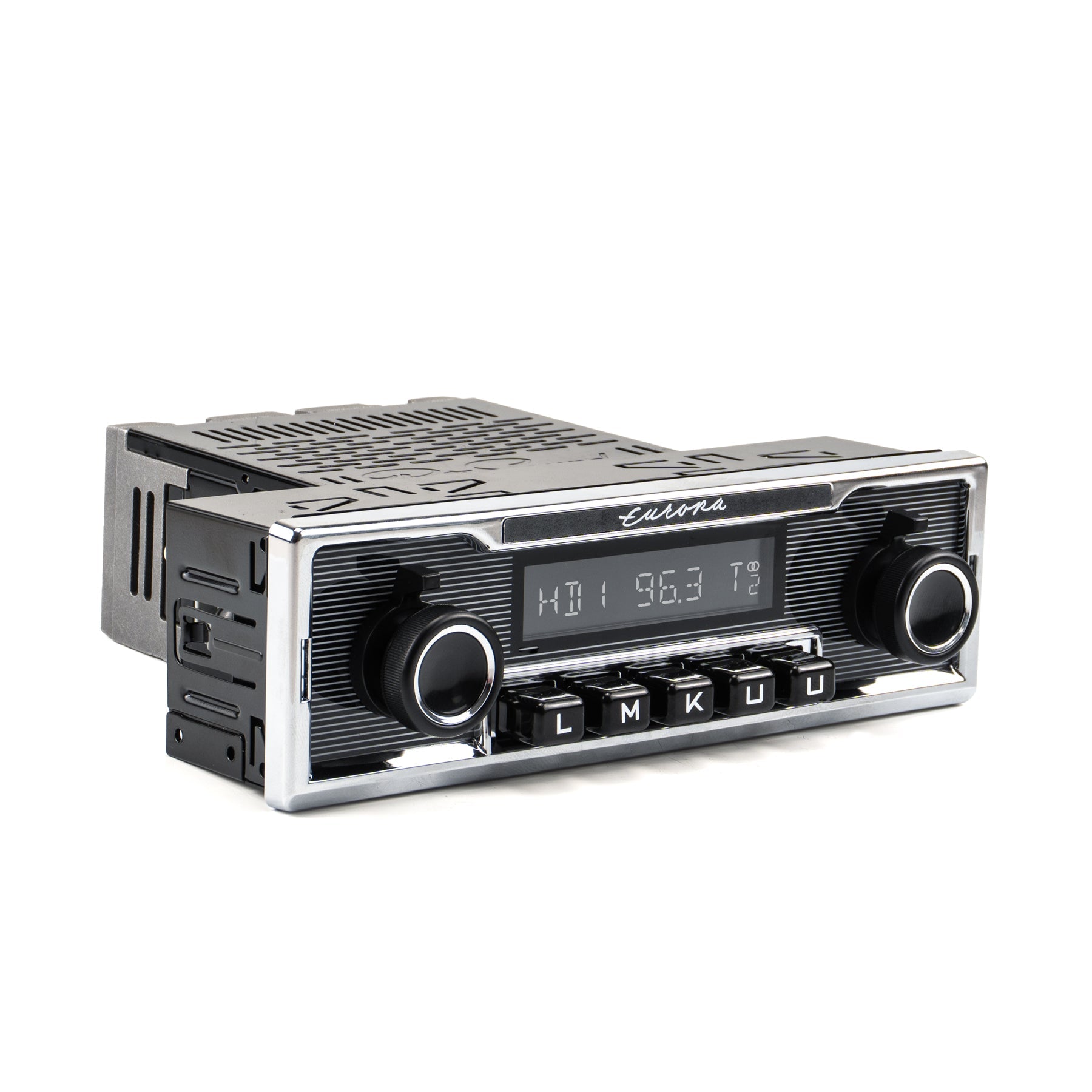

The RetroSound® Europa Radio is designed to replicate the style of the factory radio in your vehicle. The replica knobs, large push-buttons, elegant chrome trim, and pinstriping perfectly complement the interior style of your vehicle while updating the audio technology to today's standards. A DIN Kit is included with the Europa Radio Face to provide an easy installation in your classic car with an OEM appearance.

Motor 4HD

  • HD Radio® Technology
  • SiriusXM-Ready® (SXV300V1 tuner sold separately)
  • Made for iPod®/iPhone®
  • Built-in Bluetooth® (Version 5.0)
  • Includes Bluetooth® microphone for hands-free calls
  • AM/FM RDS tuner with 30 presets
  • Two USB ports for flash drives and other devices
  • 2.1-amp device charging via USB
  • Built-in 300-watt (peak power) Mosfet amplifier
  • 25 watts RMS x 4 channels – TrueRating™
  • Dual RCA pre-outs for external amplifiers
  • Dedicated subwoofer output
  • Adjustable color display
  • Non-volatile memory
  • 2-Year Warranty
  • Assembly is required

Motor 1B

Bluetooth + AM/FM RDS + AUX input
  • Classic European look with chrome trim, push-buttons, replica knobs, and pinstrip detailing

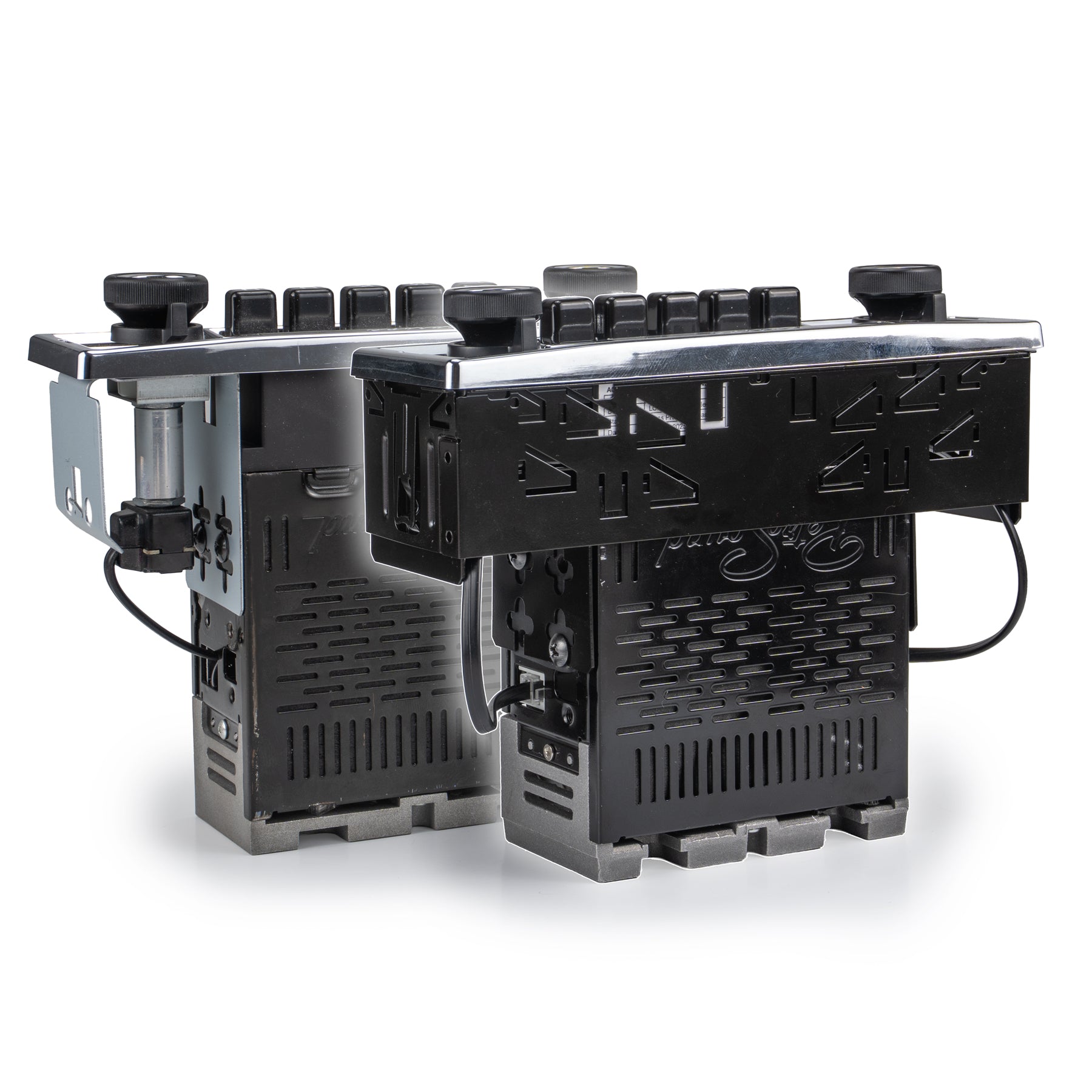

  • Integrated shafts for simplified assembly and installation
  • Built-in Bluetooth® (Version 5.0)
  • Includes Bluetooth® microphone for hands-free calls
  • AM/FM RDS tuner with 30 presets
  • Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
  • Auxiliary input for portable devices
  • Built-in 275-watt (peak power) Mosfet amplifier
  • 18 watts RMS x 4 channels – TrueRating™
  • Non-volatile memory
  • 1-Year Warranty
  • Assembly is required

Motor 2B

Bluetooth + USB + Pre-outs
  • Classic European look with chrome trim, push-buttons, replica knobs, and pinstrip detailing
  • Integrated shafts for simplified assembly and installation
  • Built-in Bluetooth® (Version 5.0)
  • Includes Bluetooth® microphone for hands-free calls
  • AM/FM RDS tuner with 30 presets
  • Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
  • USB port for flash drives and other devices
  • 1-amp device charging via USB
  • Built-in 300-watt (peak power) Mosfet amplifier
  • 25 watts RMS x 4 channels – TrueRating™
  • Dual RCA pre-outs for external amplifiers
  • Dedicated subwoofer output
  • Adjustable color display
  • Non-volatile memory
  • 1-Year Warranty
  • Assembly is required

Motor 4HD

HD Radio + SiriusXM-Ready
  • Classic European look with chrome trim, push-buttons, replica knobs, and pinstrip detailing
  • Integrated shafts for simplified assembly and installation
  • HD Radio® Technology
  • SiriusXM-Ready® (Requires SXV300V1 tuner sold separately)
  • Built-in Bluetooth® (Version 5.0)
  • Includes Bluetooth® microphone for hands-free calls
  • AM/FM RDS tuner with 30 presets
  • Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
  • Auxiliary input for portable devices
  • Two USB ports for flash drives and other devices
  • 1-amp device charging via USB
  • Built-in 300-watt (peak power) Mosfet amplifier
  • 25 watts RMS x 4 channels – TrueRating™
  • Dual RCA pre-outs for external amplifiers
  • Dedicated subwoofer output
  • Adjustable color display
  • Non-volatile memory
  • 2-Year Warranty
  • Assembly is required

Specifications

  Motor 1B Motor 2B Motor 4HD
FM
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS 87.5-107.9MHz 87.5-107.9MHz 87.5-107.9MHz
Antenna Terminal External Antenna Connector External Antenna Connector External Antenna Connector
Usable Sensitivity 12.5 dBf 12.5 dBf 12.5 dBf
Selectivity 75 dB @ 400kHz 75 dB @ 400kHz 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono) 62 dB (Stereo), 67 dB (mono) 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (mono) 0.8% (stereo), 0.5% (mono) 0.8% (stereo), 0.5% (mono)
Separation 32 dB @ 1kHz 32 dB @ 1kHz 32 dB @ 1kHz
Frequency Response 30-16,000 Hz 30-16,000 Hz 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz 530-1710 kHz 530-1710 kHz
Antenna Terminal External Antenna Connector External Antenna Connector External Antenna Connector
General
Dimensions (radio body) 3.96”W x 1.98”H x 4.30”D 3.96”W x 1.98”H x 4.30”D 3.96”W x 1.98”H x 4.30”D
Power Requirements 11.5-14.4 volts 10.5-14.4 volts 10.5-14.4 volts
Current Consumption (during operation) Max. 15A Max. 15A Max. 15A
Current Consumption (car off) 3.5ma 3.5ma 3.5ma
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 18x4 watts RMS 40x4 Max Power 25x4 watts RMS 45x4 watts Max Power 25x4 watts RMS 45x4 watts Max Power
Output Impedance 4-8ohm 4-8ohm 4ohm
AUX 1 Input (AUX cable length, 8”) >300 mV / 6 kΩ - >300 mV / 6 kΩ
AUX 2 Input (aux cable length, 8”) - - >300 mV / 6 kΩ
USB 1 Input (USB cable length, 16”) - 5V (USB female input) 5V (USB female input)
USB 2 Input - - 5V (USB female input)
Low Level Output (4 channels) - 2.85 volts 2.85 volts
EROM Non-Volatile Memory Non-Volatile Memory Non-Volatile Memory
